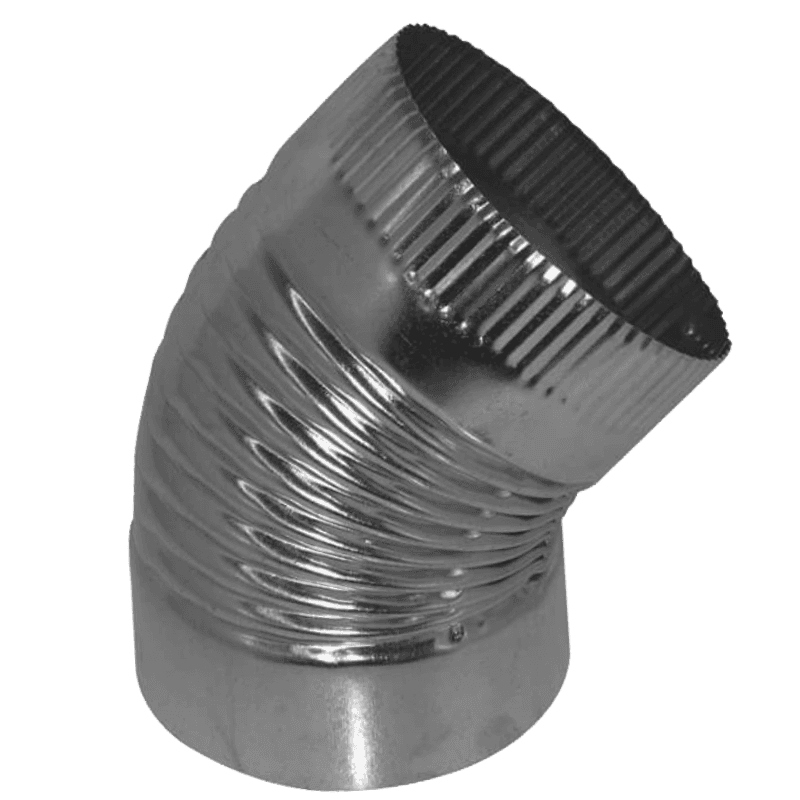

#430 – Crimped elbow 45°
Made in galvanized
C. 30G
| Ø | Item number | Un/Box | Weight/Box |
|---|---|---|---|
| 3" | 430_3_G30 | 8 | 2 lbs |
| 4" | 430_4_G30 | 8 | 3 lbs |
| 5" | 430_5_G30 | 8 | 4 lbs |
| 6" | 430_6_G30 | 8 | 5 lbs |
C. 28G
| Ø | Item number | Un/Box | Weight/Box |
|---|---|---|---|
| 3" | 430_3_G28 | 8 | 2 lbs |
| 4" | 430_4_G28 | 8 | 3 lbs |
| 5" | 430_5_G28 | 8 | 4 lbs |
| 6" | 430_6_G28 | 8 | 5 lbs |
| 7" | 430_7_G28 | 8 | 9 lbs |
| 8" | 430_8_G28 | 8 | 14 lbs |
| 9" | 430_9_G28 | 8 | 18 lbs |
| 10" | 430_10_G28 | 8 | 22 lbs |
C. 26G
| Ø | Item number | Un/Box | Weight/Box |
|---|---|---|---|
| 5" | 430_5_G26 | 8 | 4 lbs |
| 6" | 430_6_G26 | 8 | 5 lbs |
| 7" | 430_7_G26 | 8 | 9 lbs |
| 8" | 430_8_G26 | 8 | 14 lbs |
| 9" | 430_9_G26 | 8 | 18 lbs |
